A-00

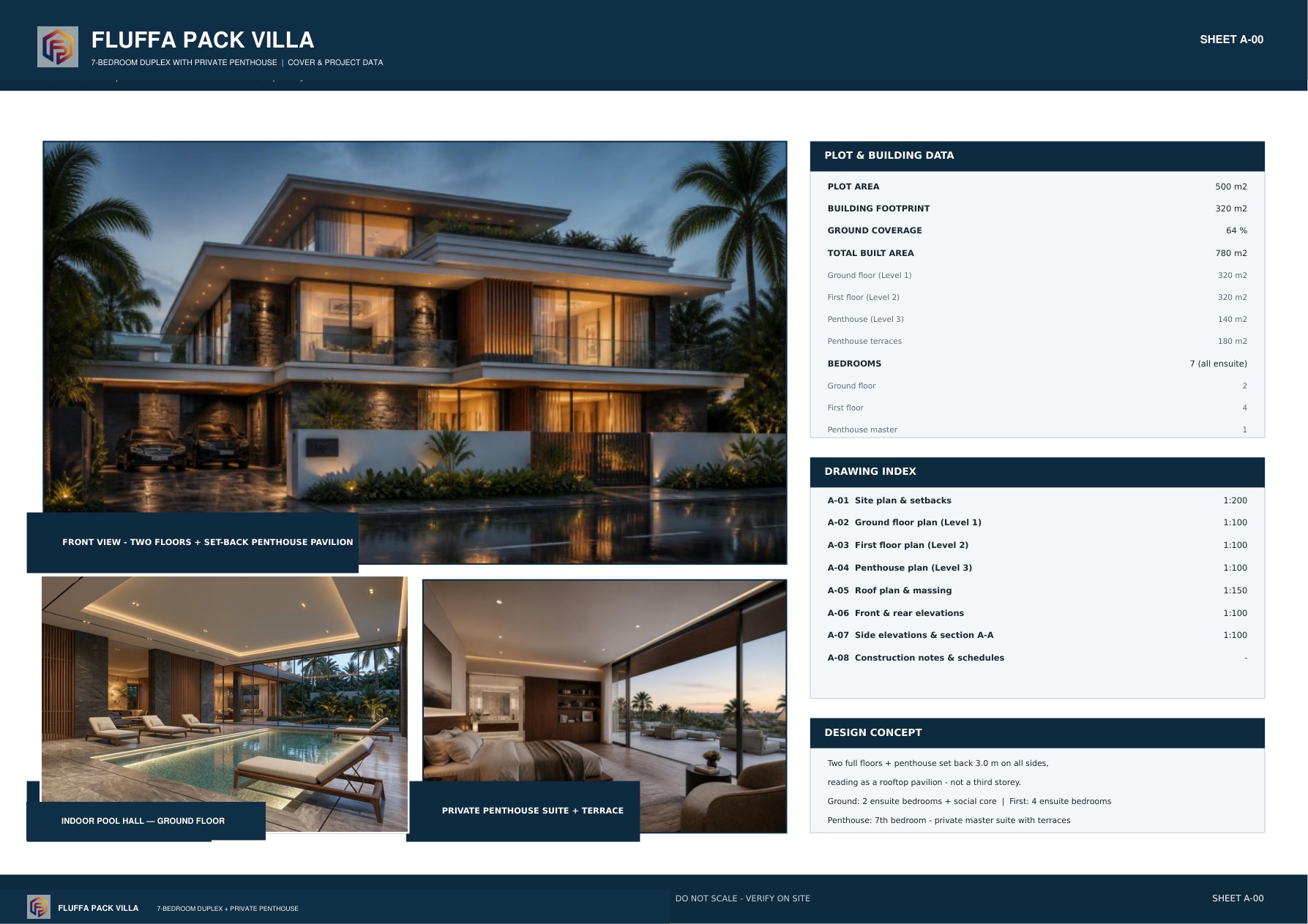

Cover & Project Data
Design summary, key levels and building data for the 7-bedroom duplex with private penthouse.
7
Bedrooms (2 + 4 + penthouse master)
16.0 × 20.0 m
Building footprint
20.0 × 25.0 m
Plot size
+0.00 / +3.95 / +7.90 / +11.60
Level datums
A-01

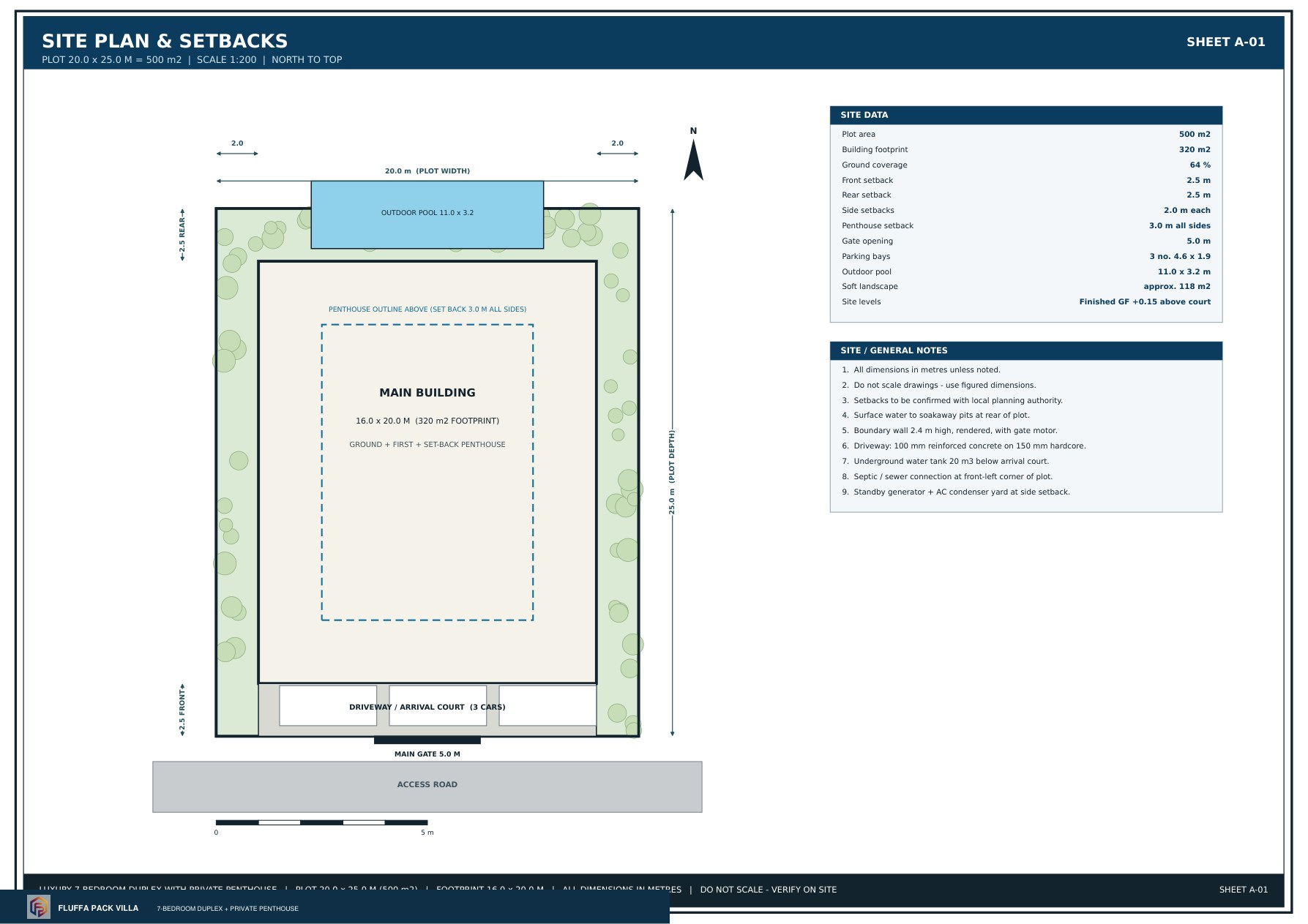

Site Plan
20.0 × 25.0 m plot, 16.0 × 20.0 m footprint, setbacks, access, parking and landscape zones.
A-02

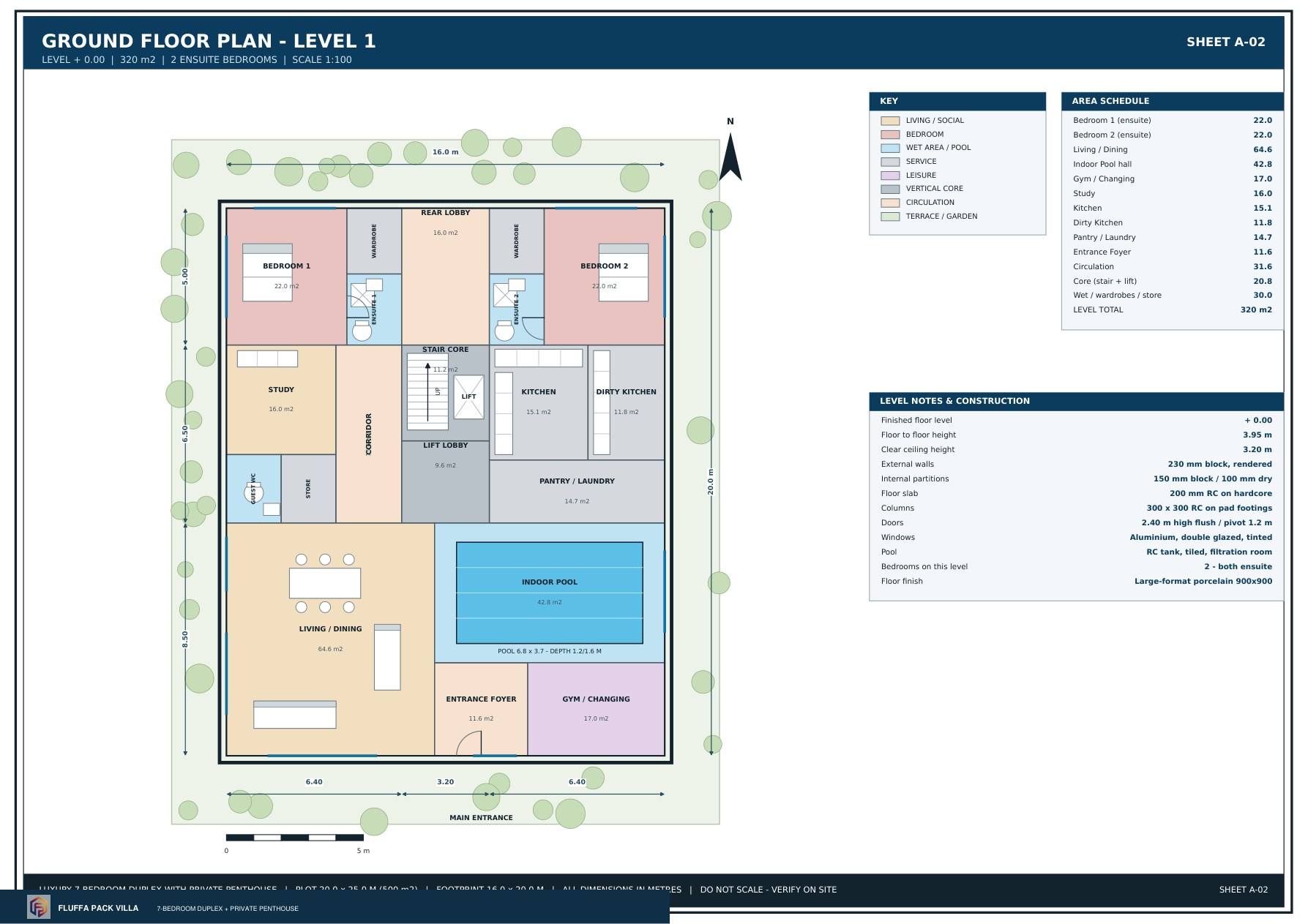

Ground Floor Plan
2 ensuite bedrooms, living & dining, kitchen with pantry/laundry, indoor pool, gym, study, stair/lift core.
A-03

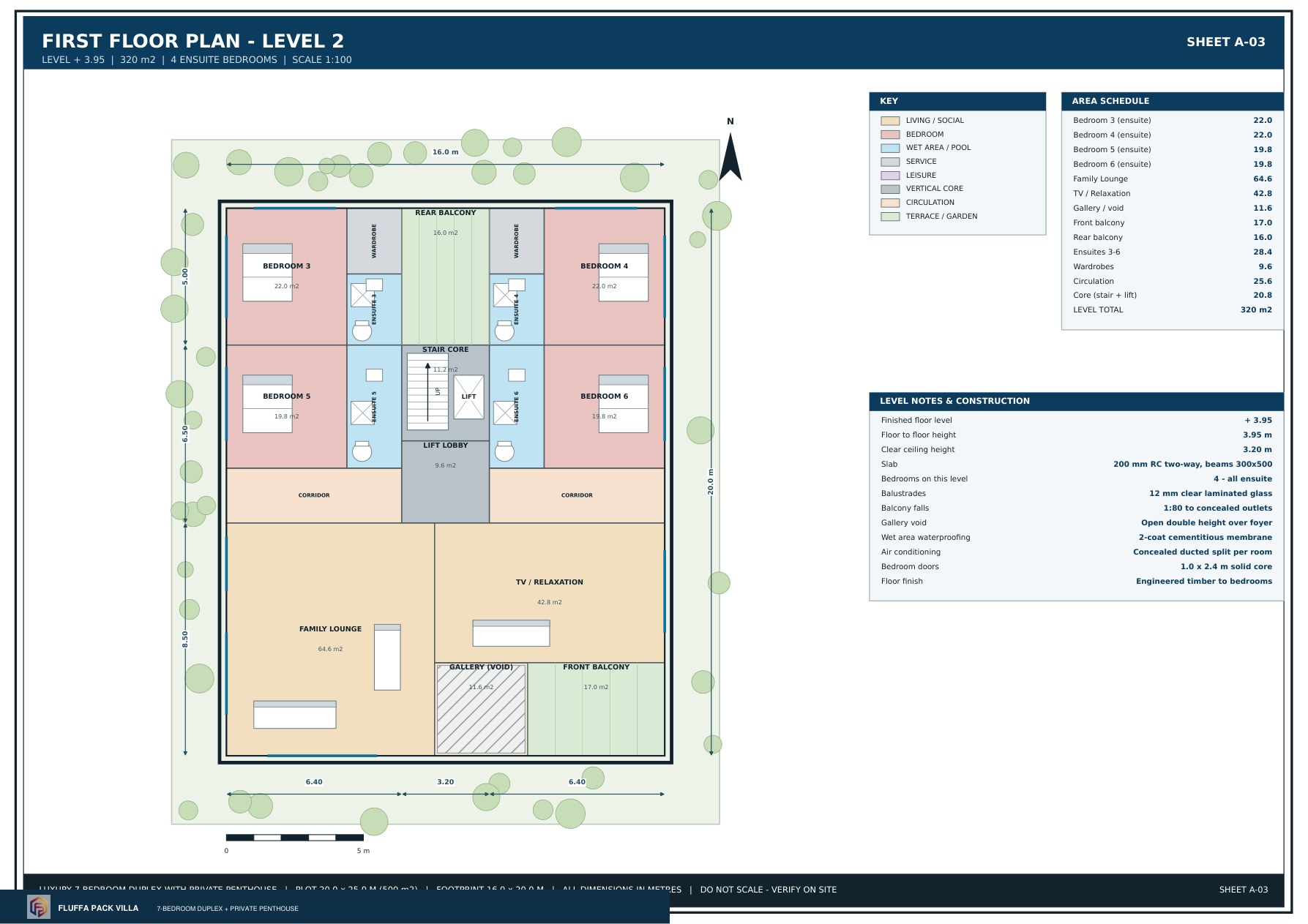

First Floor Plan
4 ensuite bedrooms, family lounge, gallery void, balconies and service schedule.
A-04

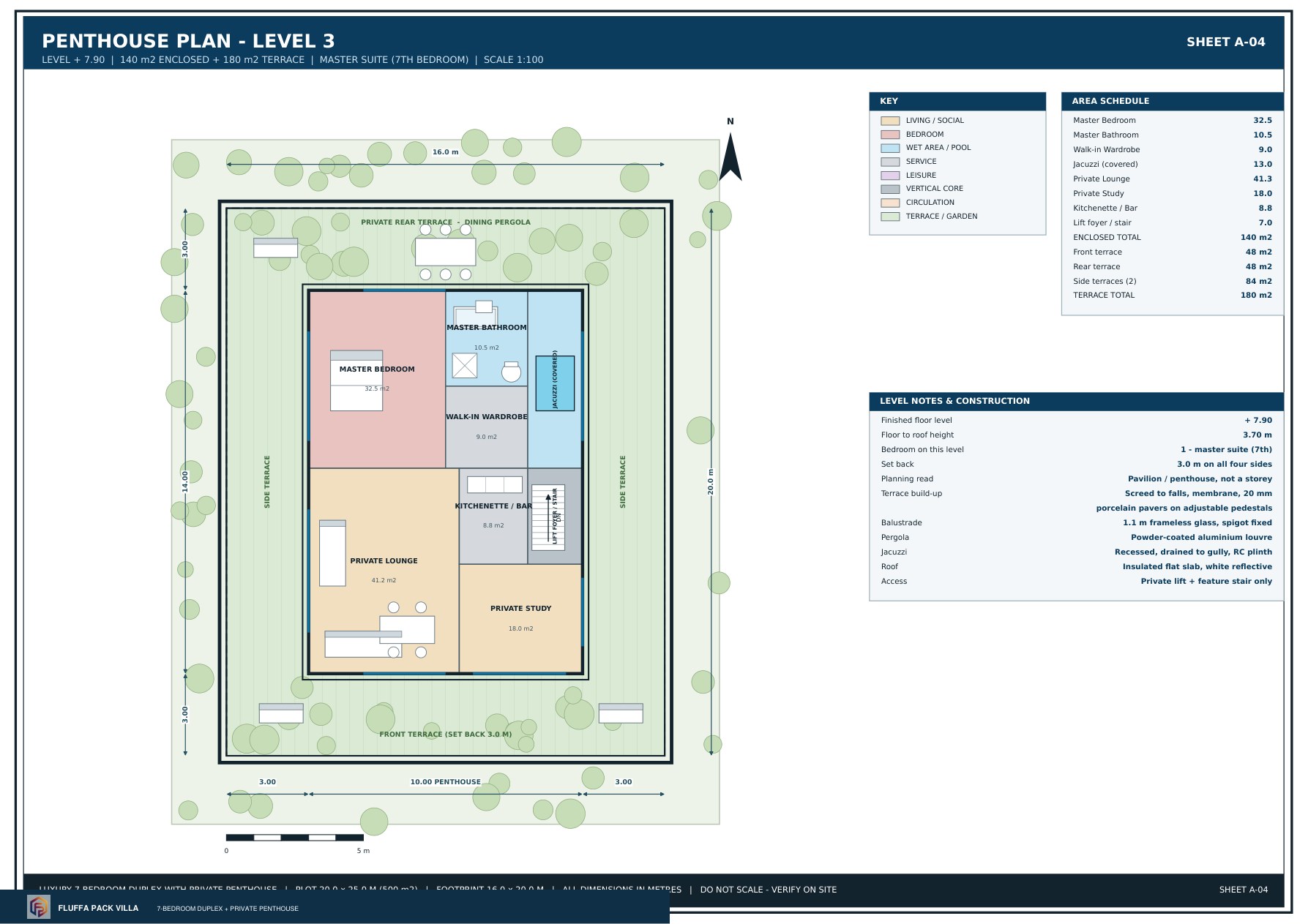

Penthouse Plan
The 7th bedroom — master suite with walk-in wardrobe, lounge/study, kitchenette/bar and wrap-around terraces, set back 3.0 m all round.
A-05

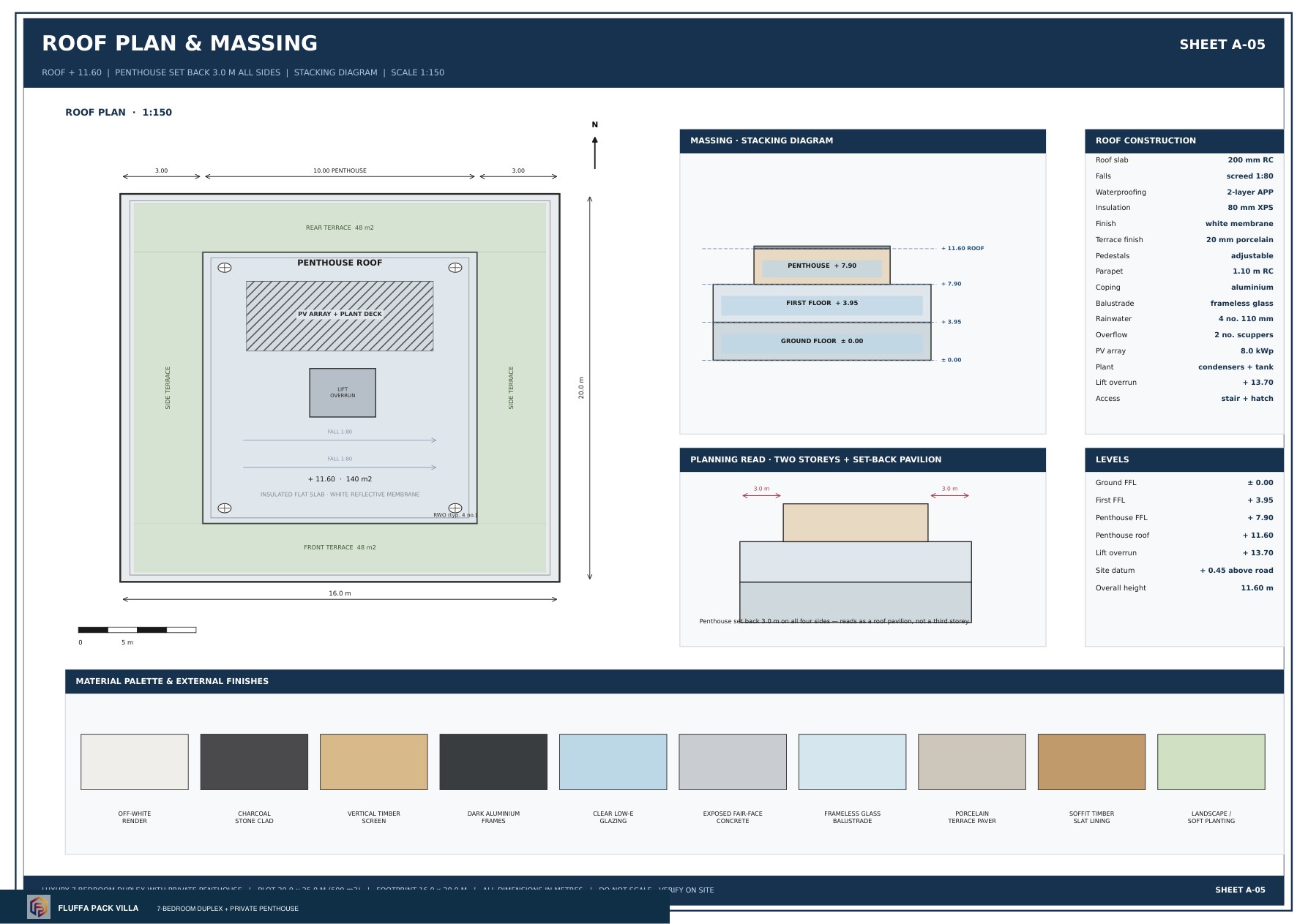

Roof Plan & Massing
Roof falls, rainwater outlets, PV/plant deck, lift overrun and stacking diagram with key levels.
A-06

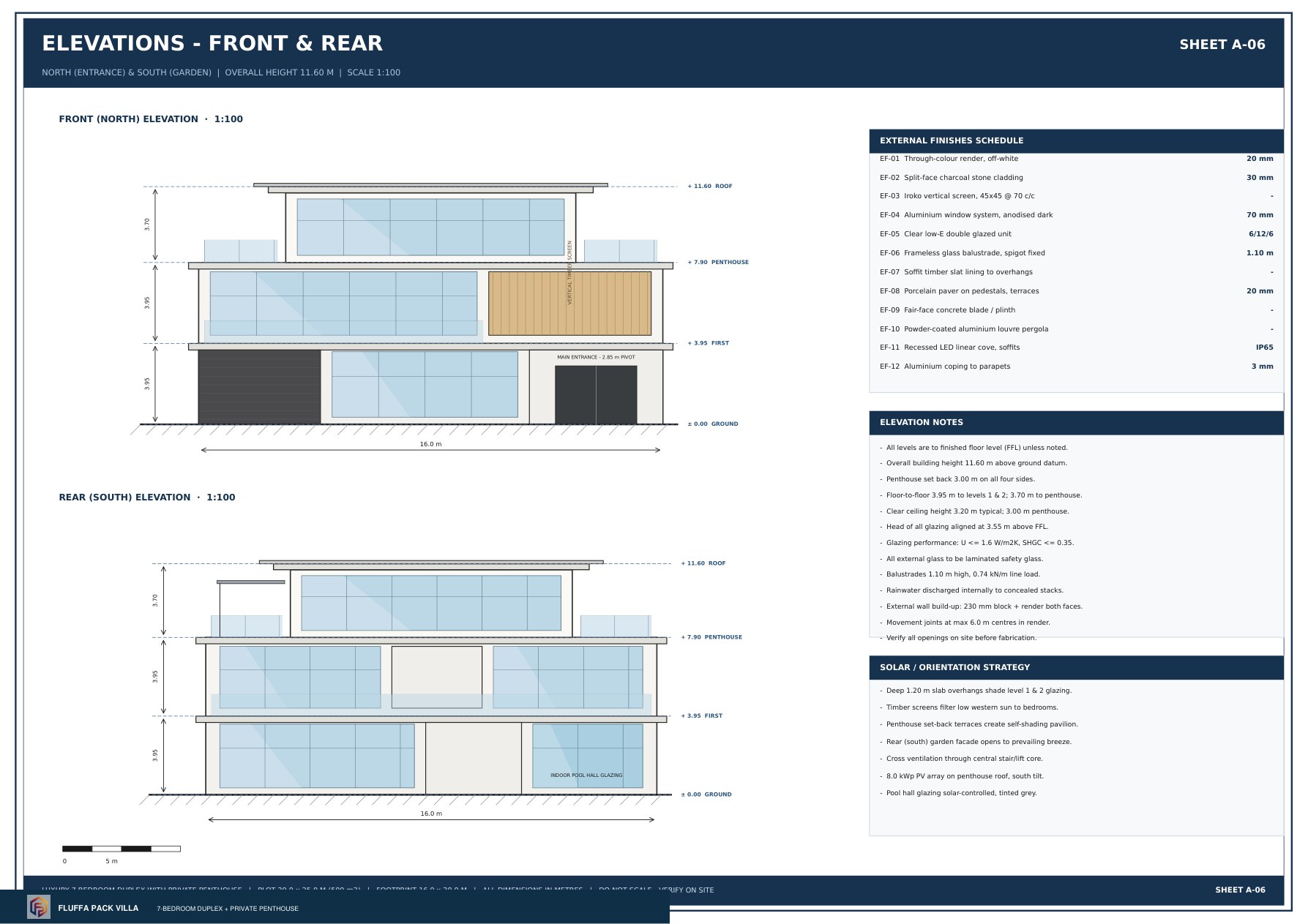

Front & Rear Elevations
External finishes, glazing, timber screens, terraces and level datums for the primary facades.
A-07

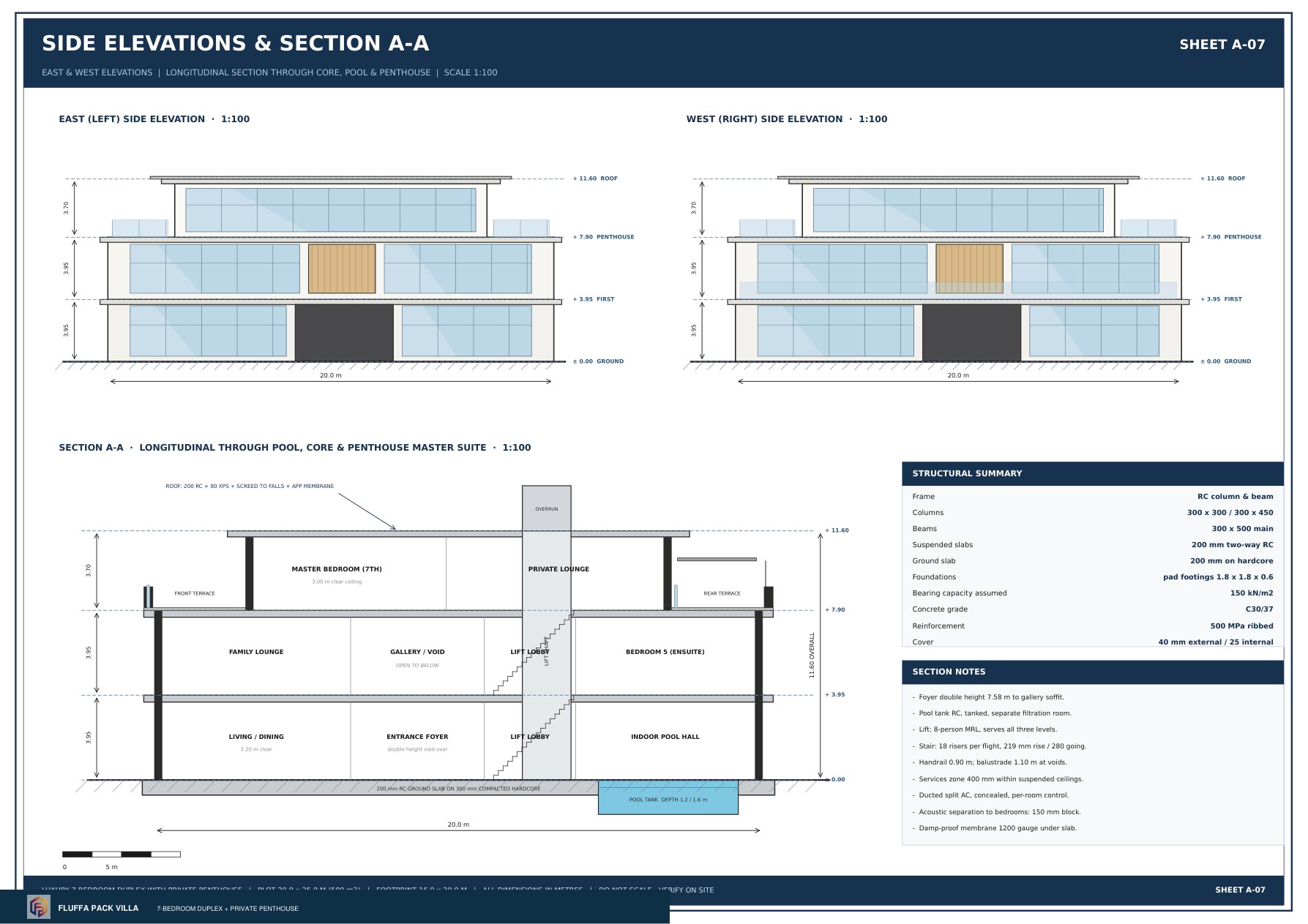

Side Elevations & Section
East/west elevations and a full longitudinal section through pool, core, living spaces and penthouse.
A-08

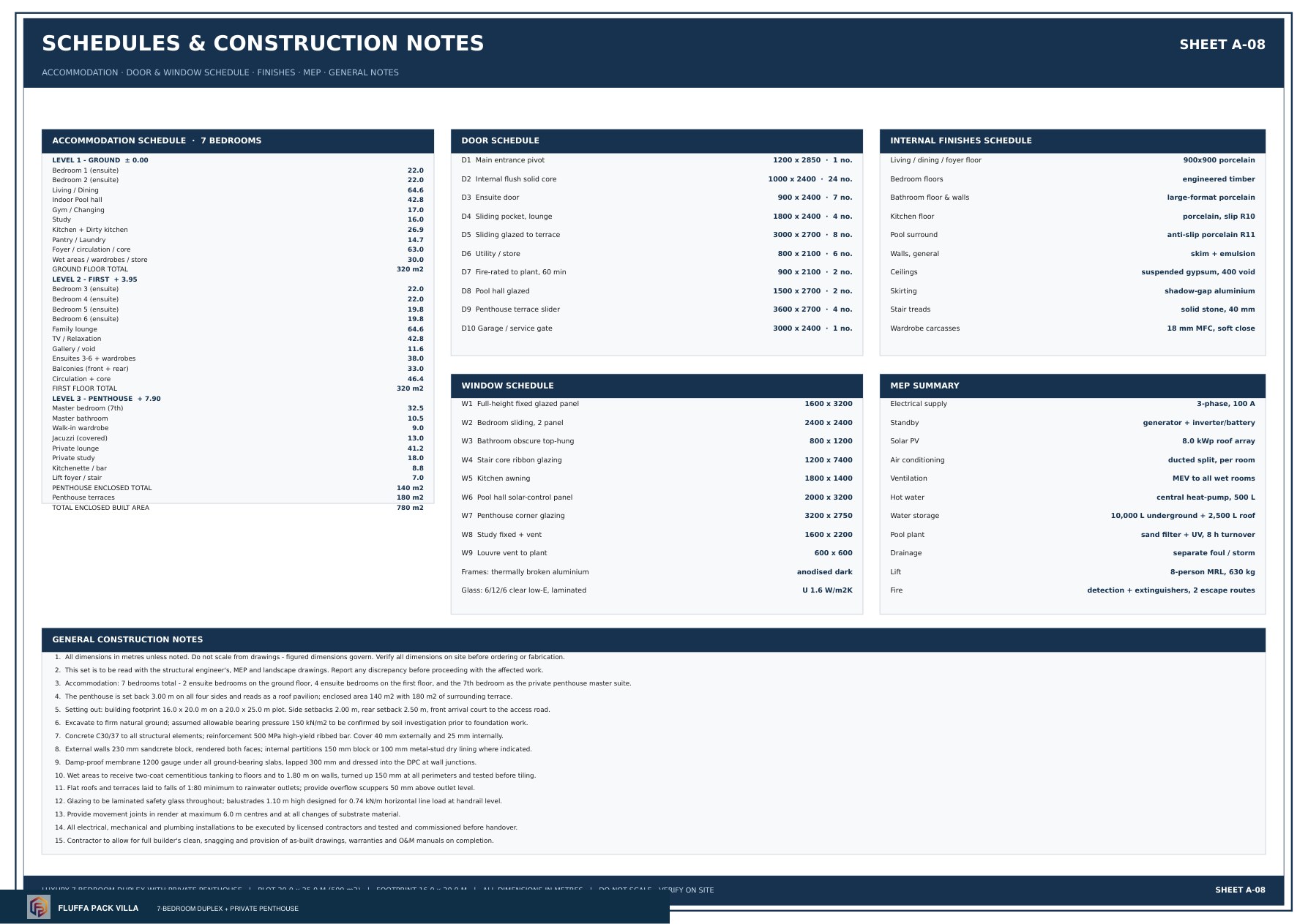

Schedules & Construction Notes
Accommodation, door/window and finish schedules, MEP summary and general construction notes.
A-09

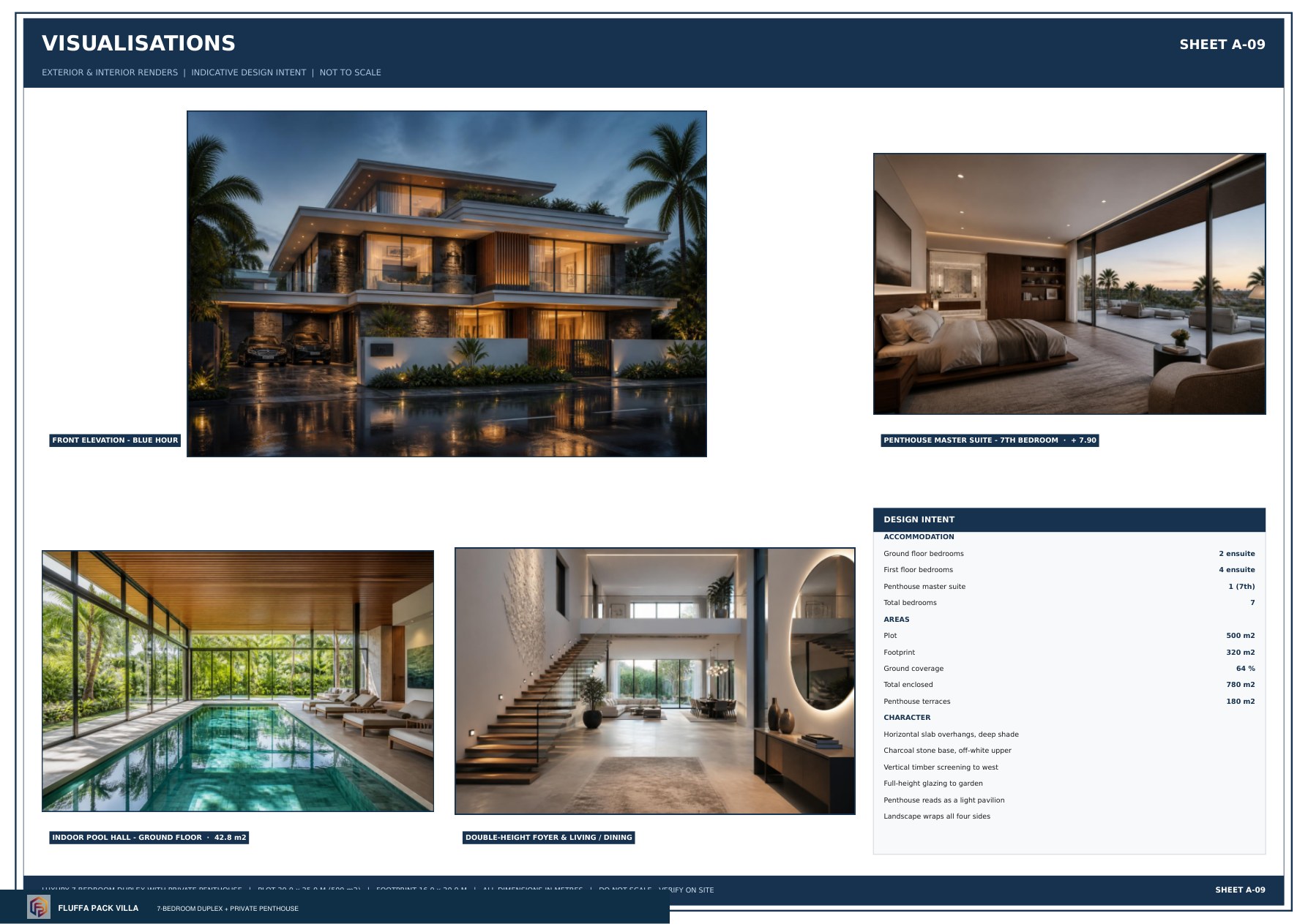

Renders
Blue-hour exterior, penthouse suite, double-height foyer and indoor pool visualisations.
